Diuna

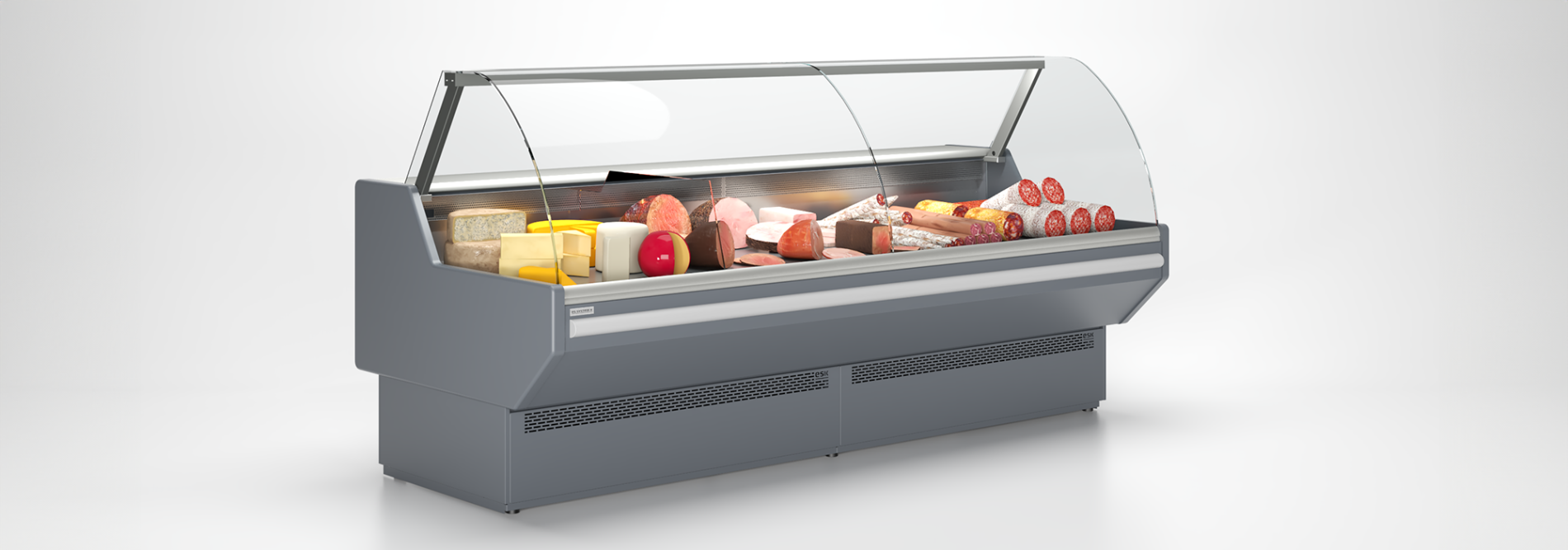

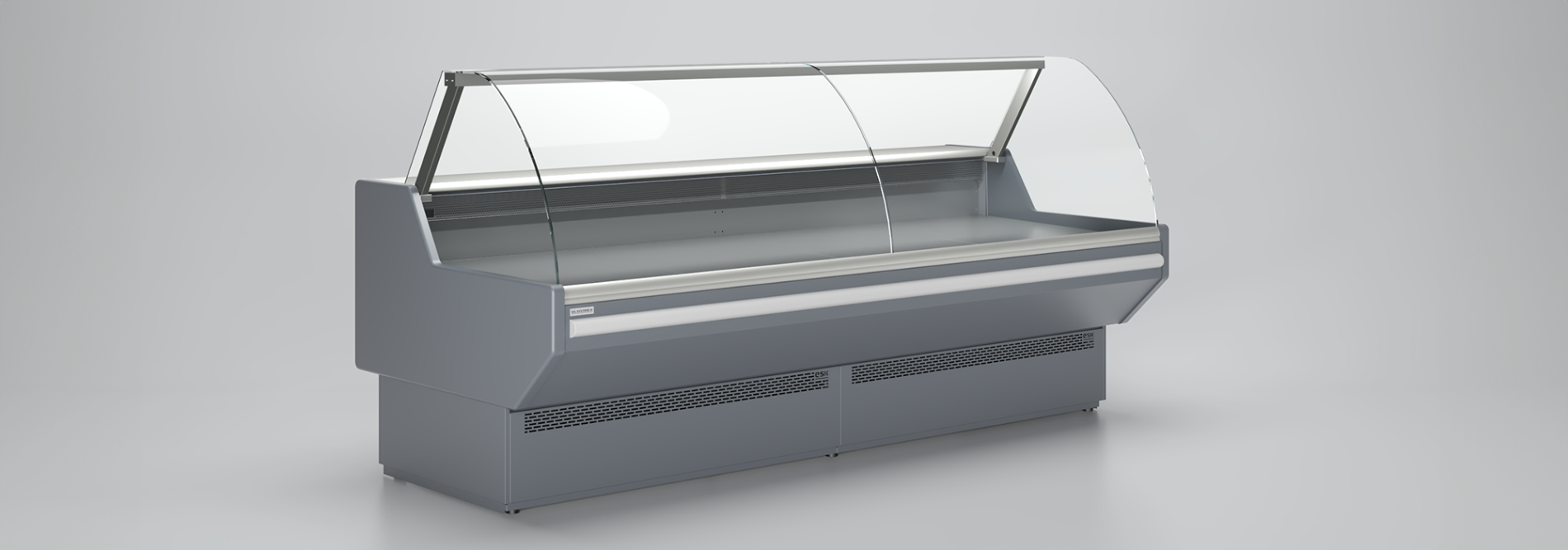

Plug-in counter with a built-in condensing unit
Available in:

Plug-in

Refrigerant
R290

Temperature class / range
3H1 (+1 ÷ +10 °C)

Climatic class
3 (25 °C, 60% RH)

Modules
1,25 | 1,875 | 2,5 | 3,75
Quality at a reasonable price!
The counter is designed for the needs of small and medium-sized retail outlets.

Storage chamber
compatible with E2 containers

Wide worktop
comfortable work space

Tilt glass
helps to keep the cabinet clean
- build-in condensing unit
- static refrigeration
- ABS sides (gray colour) with single glass
- front glass tempered, bended, hinged
- front glass anti-mist heater
- inox bottom shelf
- inox storage chamber suitable for E2 containers
- back body of the counter in colour white
- storage chamber door (grey colour)
- granite worktop
- top LED lighting, single, white colour
- electric controller
- electric defrost
- evaporator heater
- automatic evaporation of condensate
- expansion valve
- plexiglass curtains
- PCV bumper
- multiplexable
| Diuna | ||||
|---|---|---|---|---|
| 1,25 | 1250 | 40 | 150 | 230V/50Hz |
| 1,875 | 1875 | 40 | 225 | 230V/50Hz |
| 2,5 | 2500 | 40 | 300 | 230V/50Hz |
| 3,75 | 3750 | 40 | 455 | 230V/50Hz |


![length without sides [mm]](https://essystemk.com/storage/technical_dataset/2021/12/14/szerokosc1-1639485984.jpg)
![side width [mm]](https://essystemk.com/storage/technical_dataset/2021/12/14/bok1-1639486043.jpg)
![total useful capacity [dm3]](https://essystemk.com/storage/technical_dataset/2021/12/14/pojemnosc1-1639486090.jpg)
